# What is nodecast-tv?
nodecast-tv is a modern, web-based IPTV player featuring Live TV, EPG, Movies (VOD), and Series support. Built with performance and user experience in mind.
## Features
- **๐บ Live TV**: Fast channel zapping, category grouping, and search.
- **๐
TV Guide (EPG)**: Interactive grid guide with 24h timeline, search, and dynamic resizing.
- **๐ฌ VOD Support**: Dedicated sections for Movies and TV Series with rich metadata, posters, and seasonal episode lists.
- **โค๏ธ Favorites System**: Unified favorites for channels, movies, and series with instant synchronization.
- **๐ Authentication**: User login system with admin and viewer roles ([details](https://github.com/technomancer702/nodecast-tv/pull/23)).
- **โก High Performance**: Optimized for large playlists (7000+ channels) using virtual scrolling and batch rendering.
- **โ๏ธ Management**:
- Support for Xtream Codes and M3U playlists.
- Manage hidden content categories.
- Playback preferences (volume memory, auto-play).
- **๐ Audio Transcoding**: Optional FFmpeg-based audio transcoding for Dolby/AC3/EAC3 compatibility.
- **๐ฆ Stream Remux**: Lightweight FFmpeg remux for raw MPEG-TS streams from IPTV middleware.
- **๐ณ Docker Ready**: Easy deployment containerization.

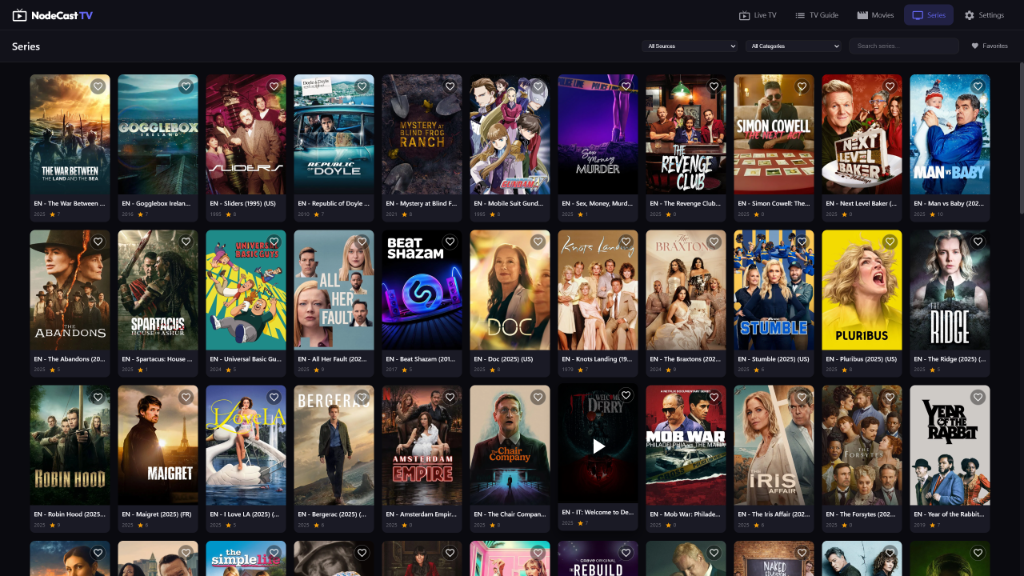

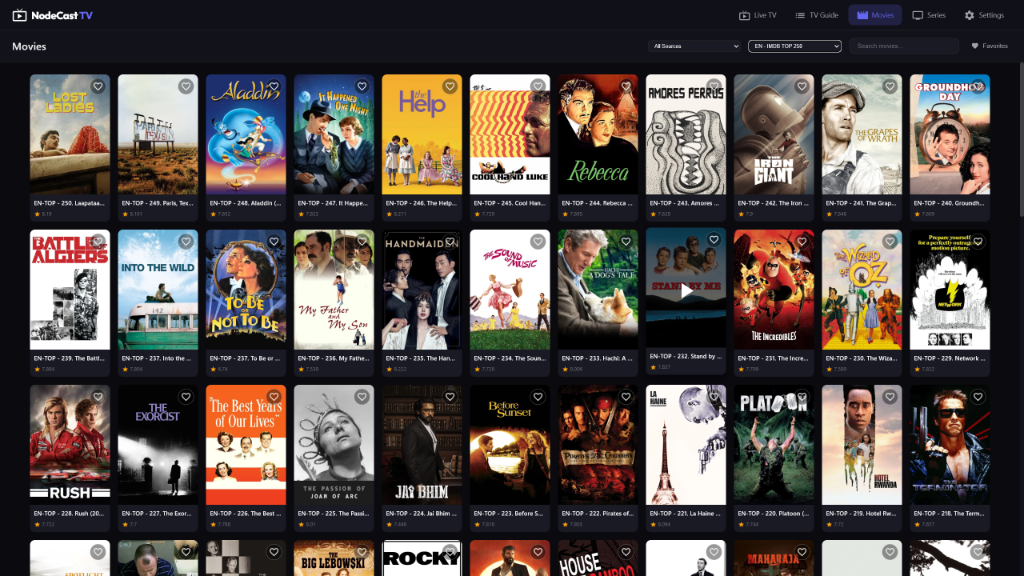

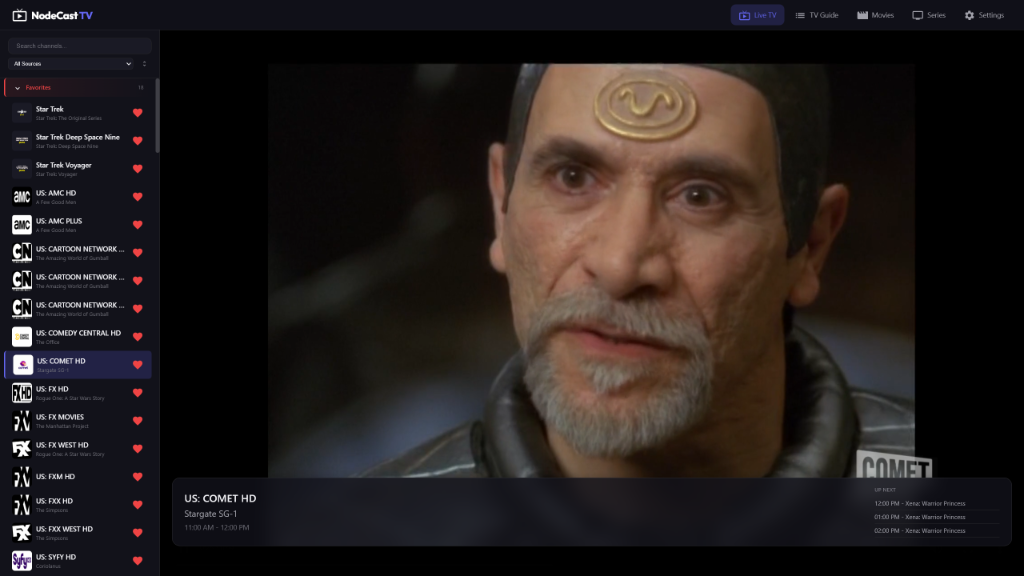

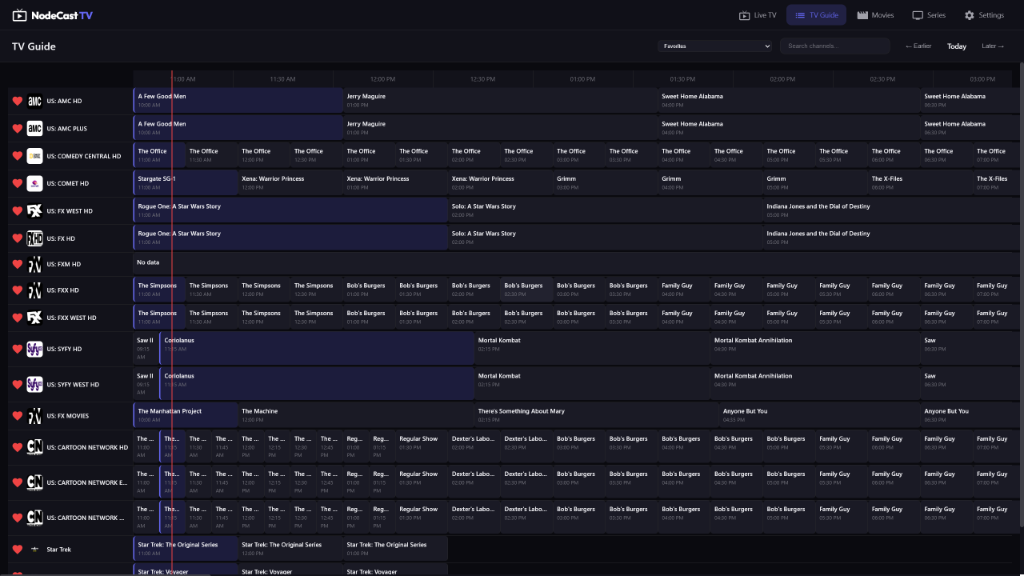

## Screenshots
## Getting Started
### Prerequisites
- Node.js (v14 or higher)
- npm
### Installation
1. Clone the repository:
```bash
git clone https://github.com/yourusername/nodecast-tv.git
cd nodecast-tv
```
2. Install dependencies:
```bash
npm install
```
3. Start the development server:
```bash
npm run dev
```
4. Open your browser at `http://localhost:3000`.
### Docker Deployment
You can run nodecast-tv easily using Docker.
1. Create a `docker-compose.yml` file (or copy the one from this repo):
```yaml
services:
nodecast-tv:
build: https://github.com/technomancer702/nodecast-tv.git#main
container_name: nodecast-tv
ports:
- "3000:3000" # Host:Container
volumes:
- ./data:/app/data
restart: unless-stopped
environment:
- NODE_ENV=production
- PORT=3000 # Optional: Internal container port
```
2. Run the container:
```bash
docker-compose up -d
```
The application will be available at `http://localhost:3000`.
### Usage
1. Go to **Settings** -> **Content Sources**.
2. Add your IPTV provider details (Xtream Codes or M3U URL).
3. Click "Refresh Sources".
4. Navigate to **Live TV**, **Movies**, or **Series** to browse your content.
## Browser Codec Support
nodecast-tv is a web-based application, which means **video decoding is handled by your browser**, not by the server. The server simply proxies the stream data - it does not transcode or re-encode video.
This means codec support depends entirely on what your browser can decode natively:
| Codec | Chrome | Firefox | Safari | Edge |
|-------|--------|---------|--------|------|
| **H.264 (AVC)** | โ
| โ
| โ
| โ
|
| **H.265 (HEVC)** | โยน | โ | โ
| โ ๏ธยฒ |
| **VP9** | โ
| โ
| โ ๏ธยณ | โ
|
| **AV1** | โ
| โ
| โ | โ
|
| **AAC Audio** | โ
| โ
| โ
| โ
|
| **AC3/EAC3 (Dolby)** | โ | โ | โ
| โ |
| **MP3 Audio** | โ
| โ
| โ
| โ
|
**Notes:**
1. Chrome may support HEVC on macOS with hardware decoder
2. Edge requires the paid "HEVC Video Extensions" from Microsoft Store ($0.99)
3. Safari VP9 support varies by device/version
**If a stream doesn't play:**
- The stream codec may not be supported by your browser
- Try a different browser (Safari for HEVC/Dolby, Chrome/Edge for VP9/AV1)
- Check if your IPTV provider offers alternative stream formats
- For Dolby audio issues, enable **"Force Audio Transcode"** in Settings โ Streaming
### Audio Transcoding
For streams with Dolby Digital (AC3/EAC3) audio that browsers can't decode natively:
1. Install FFmpeg support: `npm install ffmpeg-static` (included as optional dependency)
2. Enable **"Force Audio Transcode"** in Settings โ Streaming
3. Audio will be transcoded to AAC while video passes through unchanged
**Note:** For ad-stitched live streams (like Pluto TV), transcoding may struggle to keep up. These streams typically use AAC audio already, so the built-in HLS discontinuity handling manages audio transitions without transcoding.
## Supported Stream Types
nodecast-tv is optimized for **HLS (HTTP Live Streaming)**.
- **โ
HLS (`.m3u8`)**: Fully supported and recommended. Best for adaptive bitrate and network resilience.
- **โ
MPEG-TS (`.ts`)**: Supported via Force Remux in settings.
- **โ ๏ธ High Latency/P2P**: For sources like Acestream, prefer HLS output (`.m3u8`) over raw TS streams to avoid timeouts during buffering.
- **โ RTMP/RTSP**: Not supported natively by browsers.
## Streaming Settings
All streaming settings are found in **Settings โ Player โ Streaming**.
| Setting | What It Does | When to Enable |
|---------|--------------|----------------|
| **Force Backend Proxy** | Routes streams through the nodecast-tv server, adding proper CORS headers | When streams fail with "Access-Control-Allow-Origin" errors, or when using IPTV middleware |
| **Force Audio Transcode** | Transcodes audio to AAC using FFmpeg (video passes through unchanged) | When you have video but no audio (Dolby/AC3/EAC3 streams) |
| **Force Remux** | Remuxes MPEG-TS to MP4 container using FFmpeg (no re-encoding, very lightweight) | When using raw `.ts` streams from m3u-editor, dispatcharr, or similar middleware |
| **Stream Output Format** | Controls whether Xtream API requests use HLS (.m3u8) or TS format | Try TS if you experience buffering issues with HLS |
## Troubleshooting
### Video Won't Play (Black Screen or Loading Forever)
| Symptom | Likely Cause | Solution |
|---------|--------------|----------|
| Black screen, `Access-Control-Allow-Origin` error | CORS blocked | Enable **"Force Backend Proxy"** in Settings โ Streaming |
| Black screen with `MEDIA_ERR_DECODE` or `fragParsingError` | Unsupported codec (likely HEVC) | Try a different browser (see Codec Support table) |
| Loading forever (no error) | Decoder hung on unsupported codec | Try Safari or Edge; stream likely uses HEVC |
### No Audio (Video Plays Fine)
| Symptom | Likely Cause | Solution |
|---------|--------------|----------|
| No audio at all | Dolby/AC3/EAC3 audio | Enable **"Force Audio Transcode"** in Settings โ Streaming |
| No audio on some channels | Codec mismatch | Try Safari (best Dolby support) or enable transcoding |
| Audio out of sync | Stream encoding issue | Try changing stream format to TS in Settings |
### Buffering Issues
| Symptom | Likely Cause | Solution |
|---------|--------------|----------|
| Constant buffering | Slow network or provider | Try TS format instead of HLS in Settings |
### HTTPS / Reverse Proxy Issues
If you're running nodecast-tv behind a reverse proxy (Nginx, Caddy, Traefik) with HTTPS:
| Symptom | Likely Cause | Solution |
|---------|--------------|----------|
| Streams fail with `fragLoadError` | Mixed content (HTTPS page loading HTTP streams) | Enable **"Force Backend Proxy"** in Settings โ Streaming |
| Channel icons don't load | Mixed content on images | Icons are now automatically proxied on HTTPS - update to latest version |
| Streams work on HTTP but not HTTPS | Reverse proxy not passing headers correctly | Ensure `X-Forwarded-Proto` header is set (see examples below) |
**Caddy example:**
```
tv.domain.com {
reverse_proxy nodecast:3000 {
flush_interval -1
header_up X-Forwarded-Proto {scheme}
}
}
```
**Nginx example:**
```nginx
location / {
proxy_pass http://nodecast:3000;
proxy_buffering off;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
}
```
### IPTV Middleware (m3u-editor, dispatcharr, Threadfin, etc.)
If you're using IPTV middleware like **m3u-editor**, **dispatcharr**, **Threadfin**, or **xTeVe** to manage your streams, you may need to adjust nodecast-tv settings for optimal playback. These tools typically use passthrough mode, which preserves original codecs (like HEVC/Dolby) that most browsers cannot decode natively, and may also trigger CORS restrictions.
**Recommended Settings in nodecast-tv:**
| Setting | Location | When to Enable |
|---------|----------|----------------|
| **Force Backend Proxy** | Settings โ Player โ Streaming | Always recommended when using middleware |
| **Force Remux** | Settings โ Player โ Streaming | For raw `.ts` streams (lightweight, no re-encoding) |
| **Force Audio Transcode** | Settings โ Player โ Streaming | If you have no audio (Dolby/AC3/EAC3 streams) |
---
#### m3u-editor (sparkison/m3u-editor)
m3u-editor includes an internal proxy that remuxes streams to MPEG-TS.
**Setup:**
1. In m3u-editor, configure your playlist and enable the proxy if needed
2. In nodecast-tv, enable **"Force Remux"** in Settings โ Streaming (for raw .ts streams)
3. If audio doesn't play, enable **"Force Audio Transcode"** instead
**Note:** m3u-editor's proxy preserves original codecs. If your source has HEVC or Dolby, you'll need transcoding or a compatible browser (Safari).
---
#### dispatcharr
dispatcharr uses FFmpeg stream profiles to process streams. By default it outputs MPEG-TS with passthrough codecs.
**Setup:**
1. In dispatcharr, streams are proxied by default via stream profiles
2. In nodecast-tv, enable **"Force Remux"** in Settings โ Streaming (for raw .ts streams)
3. If audio doesn't play, enable **"Force Audio Transcode"** instead
**Custom dispatcharr profile for browser compatibility:**
If you want dispatcharr to transcode audio for you instead of nodecast-tv:
```
-user_agent {userAgent} -i {streamUrl} -c:v copy -c:a aac -f mpegts pipe:1
```
This keeps video passthrough but converts audio to AAC.
---
#### Threadfin / xTeVe
These HDHomeRun emulators work similarly to other middleware.
**Setup:**
1. Add your Threadfin/xTeVe M3U URL as an M3U source in nodecast-tv
2. Enable **"Force Remux"** in Settings โ Streaming (for raw .ts streams)
3. If needed, enable **"Force Audio Transcode"** instead for Dolby audio
### TVHeadend
If you're using TVHeadend as your source, you may need to configure a few settings for streams to play correctly in nodecast-tv:
**Option 1: Enable Force Backend Proxy (Easiest)**
- In nodecast-tv, go to **Settings โ Player โ Streaming**
- Enable **"Force Backend Proxy"**
- This routes streams through the server, bypassing browser CORS restrictions
**Option 2: Configure TVHeadend CORS**
- In TVHeadend, go to **Configuration โ General โ Base โ HTTP Server Settings**
- Add your nodecast-tv URL to **"CORS origin"** (e.g., `http://192.168.1.100:3000`)
- **Note:** You must include the protocol (`http://` or `https://`)
**Additional Tips:**
- Enable **"digest+plain"** authentication in TVHeadend if using username/password in the M3U URL
- Try different stream profiles (`?profile=pass` or `?profile=matroska`) if playback issues persist
### Acestream / P2P Streaming
If you are using `acestream-docker-home` or similar tools, you **MUST** use the HLS output format.
- **Don't use**: `http://proxy:6878/ace/getstream?id=...` (This is a raw MPEG-TS stream)
- **Do use**: `http://proxy:6878/ace/manifest.m3u8?id=...` (This wraps the stream in a browser-friendly HLS playlist)
## Technology Stack
- **Backend**: Node.js, Express
- **Frontend**: Vanilla JavaScript (ES6+), CSS3
- **Database**: JSON-based local storage (LowDB style)
- **Streaming**: HLS.js for stream playback
- **Audio Transcoding**: FFmpeg (optional, via ffmpeg-static)
## Project Structure
```
nodecast-tv/
โโโ public/ # Frontend assets
โ โโโ css/ # Stylesheets
โ โโโ js/ # Client-side logic
โ โ โโโ components/ # UI Components (ChannelList, EpgGuide, etc.)
โ โ โโโ pages/ # Page Controllers (Movies, Series, etc.)
โ โ โโโ api.js # API Client
โ โโโ index.html # Main entry point
โโโ server/ # Backend server
โ โโโ routes/ # API Endpoints (proxy, transcode)
โ โโโ services/ # Playlist parsers & logic
โ โโโ db.js # Data persistence layer
โโโ data/ # Persistent storage (playlists, settings)
```
## License
This project is licensed under the **GNU General Public License v3.0 (GPL-3.0)**.
You are free to:
- **Run** the program for any purpose
- **Study** how the program works and change it
- **Redistribute** copies
- **Distribute** copies of your modified versions
Under the condition that:
- You typically must distinguish your modifications from the original work
- You provide the source code to recipients
- You license any derivative works under the same GPL-3.0 license
See the [LICENSE](LICENSE) file for details.
